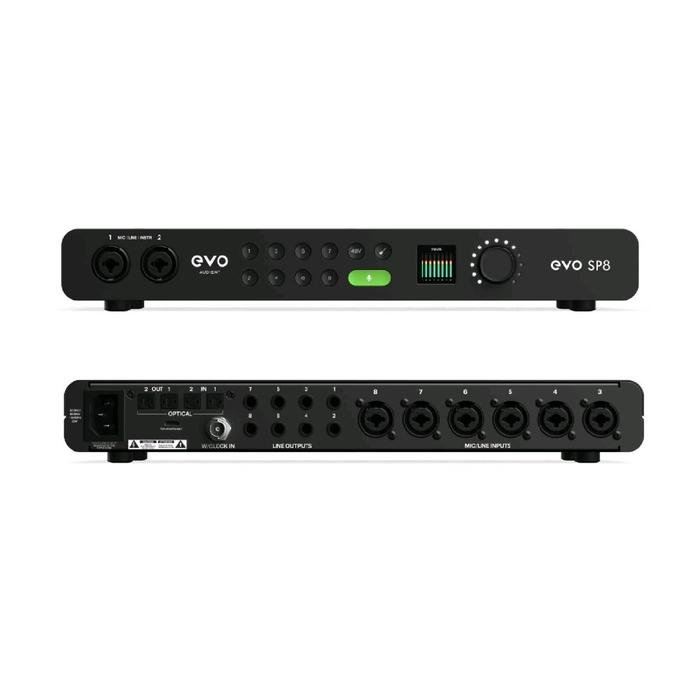

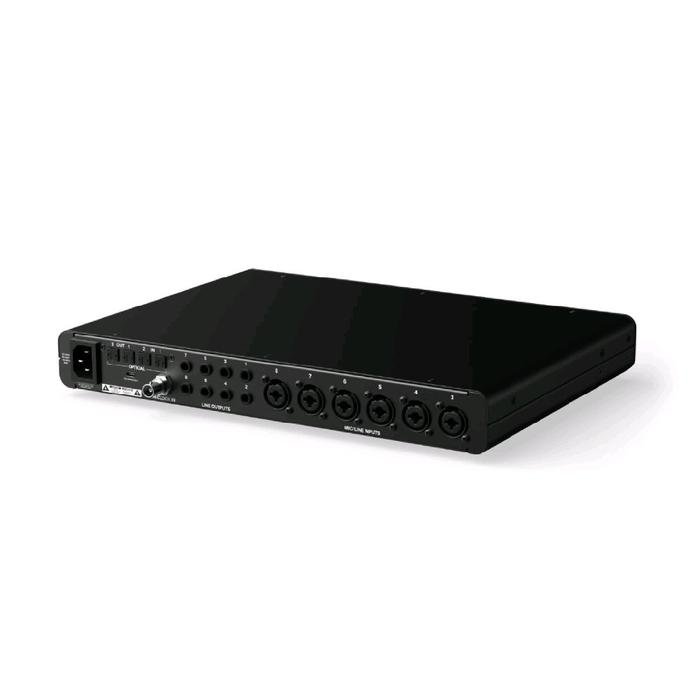

Evo Audient SP8
8 Channel Smart Preamp with AD/DA

100% PRODUK RESMI
100% PRODUK ORIGINAL
GARANSI RESMI 1 TAHUN
(Dapatkan Perpanjangan Masa Garansi Menjadi 3 Tahun**)
**Untuk mendapatkan masa perpanjangan Garansi menjadi 3 Tahun, Customer Wajib Mendaftarkan serial number produk Audient dan EVO pada web yang terdapat pada Sticker didus unit.

FEATURES
◉ 8 x EVO Mic Preamps
◉ 2 x JFET Instrument Inputs
◉ 8 x Line Outputs
◉ 2 x ADAT Inputs
◉ 2 x ADAT Outputs
◉ Class Leading AD/DA Converters
◉ Multi-Channel Smartgain
◉ ‘EVO Motion UI’ Control System
◉ High-Res LCD Screen
◉ One Knob Centralised Control
◉ Ultra Clear Metering
◉ Input/Output Control
◉ Channel Status Indication
◉ Optional Rack Ears
◉ Word Clock Input
◉ 24bit / 96kHz

SPECIFICATION
MICROPHONE PREAMPLIFIER
•Mic Gain Range: 58dB
•Line Gain Range: 58dB (-10dB pad)
•Phantom Power: 48v +/-4v @ 10mA/Channel
•Mic EIN: <-127.5dB
•CMRR: >80dB @ 1kHz
•Maximum Input Level: +16dBu
•Input Impedance (Mic):
>3kΩ Balanced
•Input Impedance (Line):
>10kΩ Balanced
•Frequency Response:
+/-0.5dB 10Hz to 40kHz
•Crosstalk:
<-105dBu @ 1kHz <-103 @ 10kHz
•THD+N @ 0dBu (1kHz):
•SNR: 100dB
•XLR: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
•1/4” Jack: TIP (Hot), RING (Cold) & SLEEVE (Shield)

D.I INPUTS
•D.I Gain Range: 58 dB
•Maximum Input Level: +10dBu
•Input Impedance: 500k
•Frequency Response:
+/-0.5dB 10Hz to 20kHz
•THD+N @ 0dBu (1kHz): •SNR: 100dB
•1/4” Jack: TIP (Hot) & SLEEVE (Shield)

ADC
•Digital Reference Level:
0dBFS = +10.5dBu
•Frequency Response:
+/-0.5dB 10Hz to Fs/2
•Crosstalk:
-125dBu @ 1kHz & 10kHz
•THD+N @ -1dBFS (1kHz): •Dynamic Range: 112.5dB A-Weighted

LINE OUTPUTS
•Maximum Output Level: 12dBu
•Digital Reference Level:
0dBFS = +12dBu
•Output Impedance: •Frequency Response:
+/-0.5dB 10Hz to Fs/2
•Crosstalk: <-110dBu @ 1kHz
•THD+N @ -1dBFS (1kHz): •Dynamic Range:
>117dB A-weighted
•1/4” Jack:
TIP (Hot), RING (Cold) & SLEEVE (Shield)

•Dimensions
Unit: 355mm (w) x 255mm (d) x 53mm (h)
