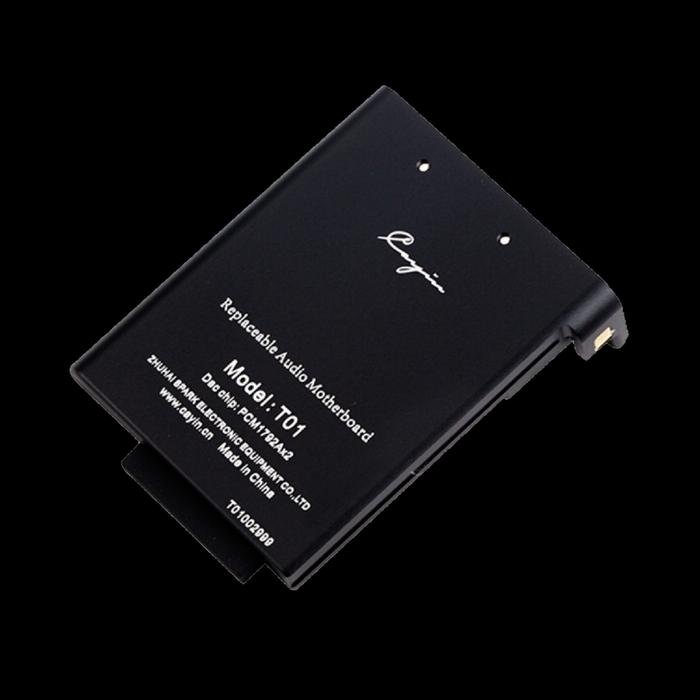

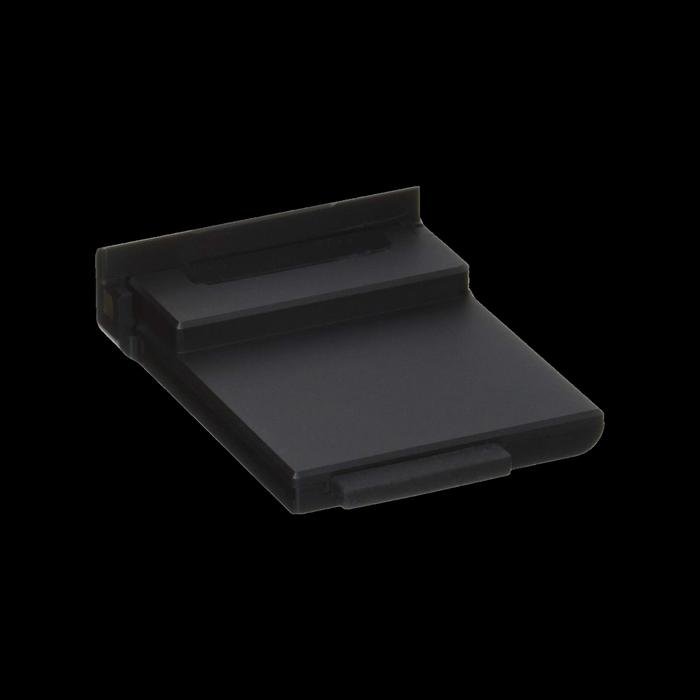

Cayin T01
Audio Motherboard with xDual PCM1792A DAC for Cayin N6II

100% PRODUK RESMI
100% PRODUK ORIGINAL

The Cayin T01 Motherboard is the second module released for Cayin’s new N6ii DAP featuring a dual PCM1792A DAC implementation and a quad OPA1622 op-amp design

FEATURES
◉T01 Replaceable Audio Motherboard for N6ii

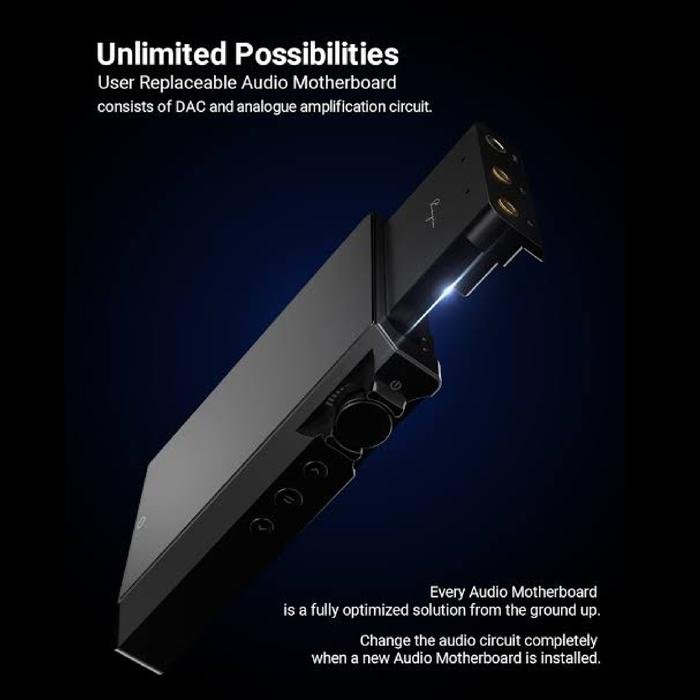

◉User Replaceable Audio Motherboard consists of DAC and analogue amplification circuit
◉Dual PCM1792A DAC chip
◉Hardware decode DSD up to DSD256, PCM up to 24Bit/192kHz
◉Digitally Controlled Analogue Volume

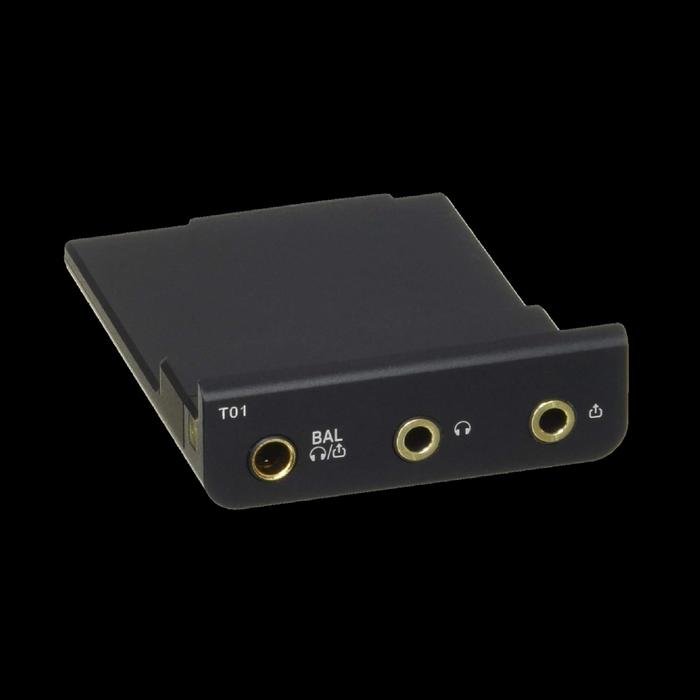

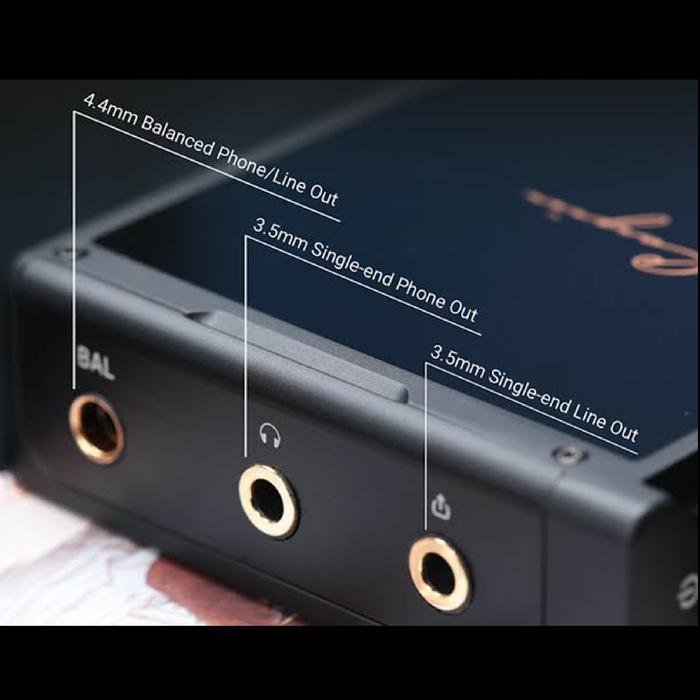

◉Fully balanced design with parallel headphone amplification, deliver hefty power to 3.5mm and 4.4mm phone out
◉User adjustable 4.4mm and 3.5mm line out output level

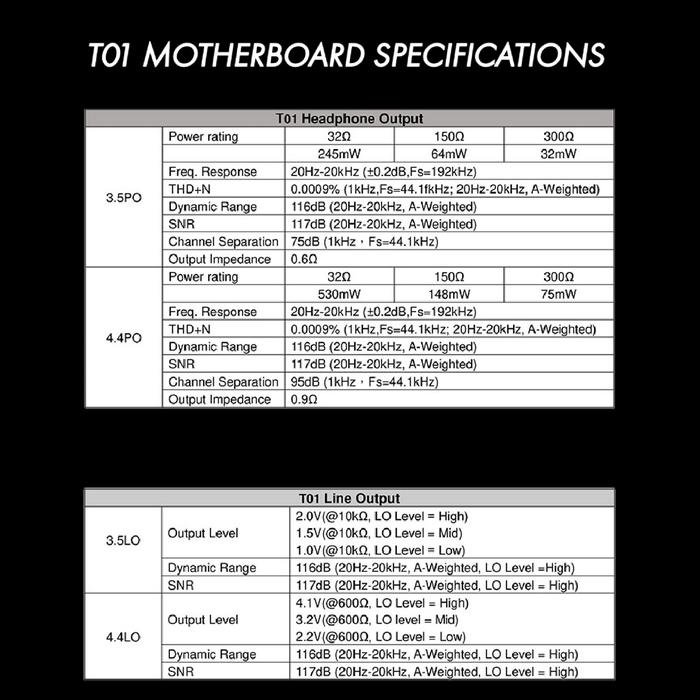

The T01 is designed around the PCM-1792 DAC chipset from Texas Instrument. Each Audio Motherboard deploys two DAC chipset in current output. The fully differential amplification circuit compromise of 4 channels I/V Converter and four OPA162 as headphone amplifier in parallel, offering up to 245mW into 32Ω unbalanced and 530mW balanced. The Volume control of T01 were conducted in analogue domain through two PGA2311A, digitally controlled analogue volume control microprocessor.

T01 will decode PCM upto 24Bit/192kHz and DSD64. It can provide upto 8.5 hours continuous playback on single-ended phone out, and around 7.5 hours on balanced phone out.
