Aune N7D (DAC Edition)
Class A Headphone Amplifier DAC

100% PRODUK RESMI
100% PRODUK ORIGINAL
GARANSI RESMI 1 TAHUN

FEATURES
◉ Class A headphone amplifier with USB-C DAC

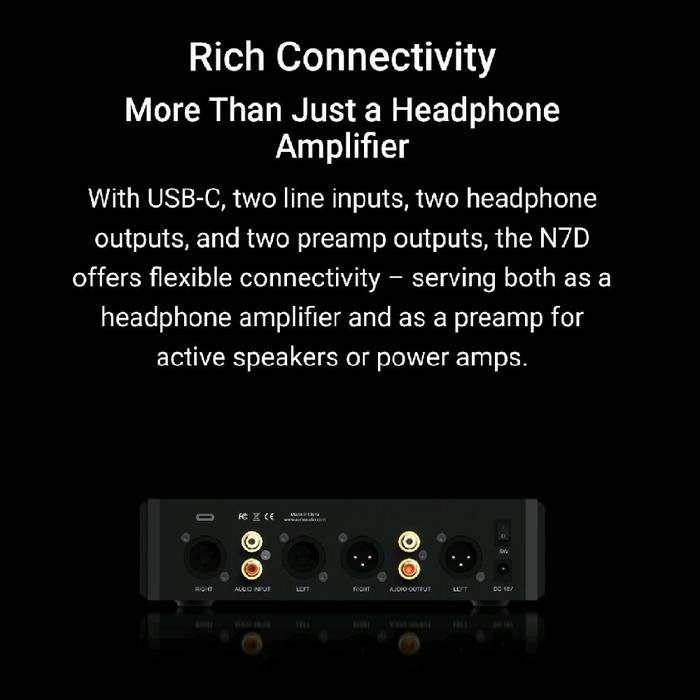

◉ Can be used as a preamplifier
◉ Fully balanced circuit design

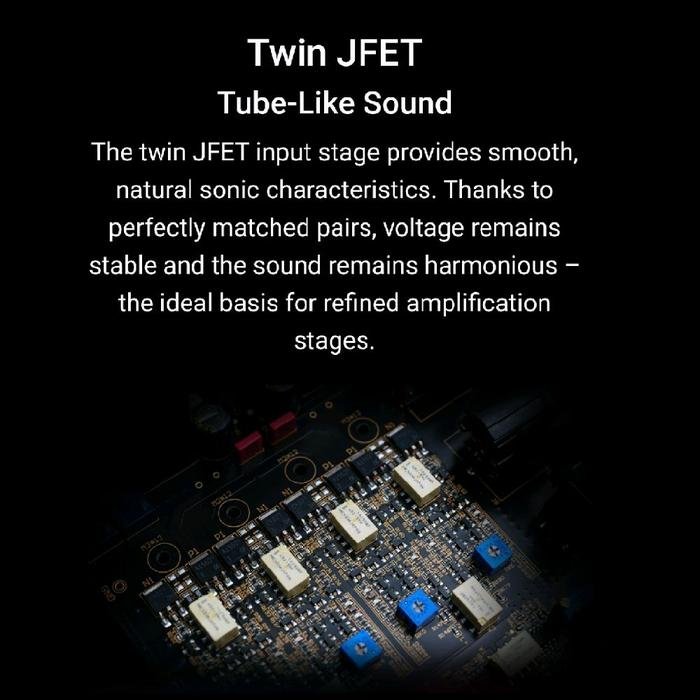

◉ Twin-JFET input
◉ Two-stage Class-A bias control

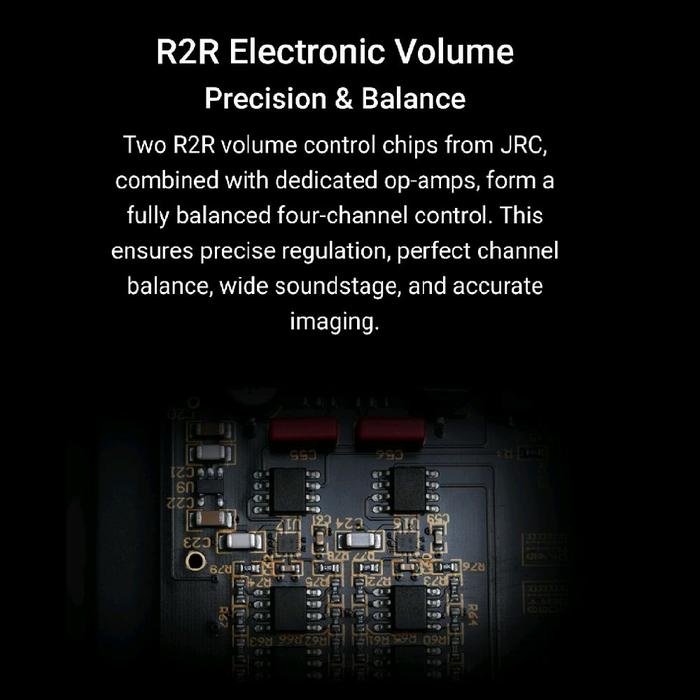

◉ R2R volume control
◉ Up to 6.5 watts output power

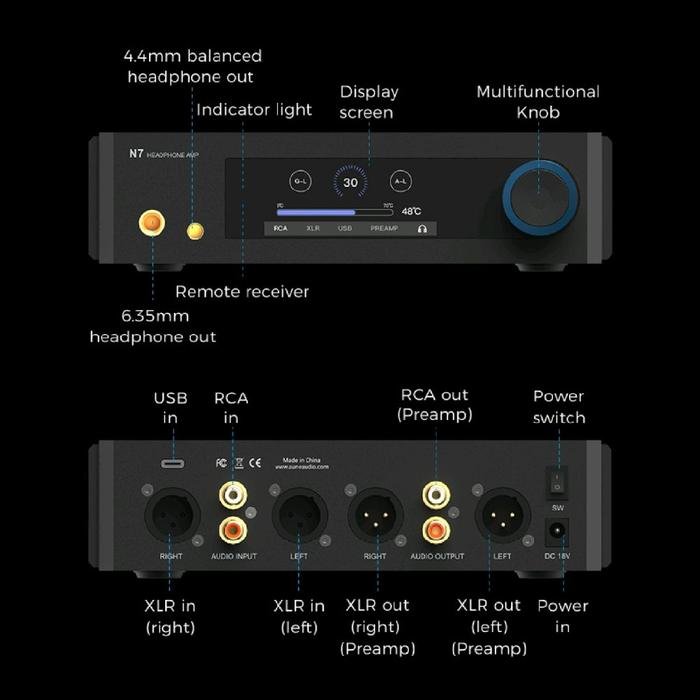

◉ 6.35 mm single-ended and 4.4 mm Pentaconn
◉ Aluminum remote control
◉ 2x Cirrus Logic CS43198 DAC chips
◉ Supports up to PCM 384 kHz and DSD 256
The N7 DAC Edition (N7D) is a compact, fully discrete Class-A headphone amplifier and USB DAC. With a twin JFET input, fully balanced four-channel R2R volume control, dual-level Class-A bias, dual gain settings, and preamp functionality, it delivers authoritative performance and a musical, high-resolution sound – powering all kinds of headphones and IEMs with ease.

SPECIFICATIONS
•Input:
USB max sampling rate: PCM768kHz, DSD256
•Input/Output Impedance:
RCA input impedance 10ΚΩ
RCA preamp output impedance
200Ω
XLR inputimpedance 22ΚΩ
XLR preamp output impedance
100Ω
6.35mm/4.4mm headphone
output impedance 1Ω

•Single-Ended 6.35mm Headphone Output:
Frequency response (20Hz-80kHz)
±0.05dB
THD-N SNR >105dB @600Ω
Crosstalk <-100dB @1kHz 600Ω

•Balanced XLR headphone output:
Frequency response (20Hz-80kHz)
±0.05dB
THD-N SNR >105dB @600Ω
Crosstalk <-100dB @1kHz 600Ω
Dimensions 208*160*83(mm)
