Mackie Onyx Artist 1.2 /
Onyx Producer 2•2
USB Audio Interface

100% PRODUK RESMI
100% PRODUK ORIGINAL
GARANSI RESMI 1TAHUN

SPECIFICATIONS
•Frequency Response:
At minimum gain, +4 dBu / –6 dBFS input
All inputs: ±0.5 dB, 20 Hz – 20 kHz
All outputs: ±0.5 dB, 20 Hz – 20 kHz
•Noise Characteristics (RMS, 10 Hz – 22 kHz)
Mic inputs: <–100 dBFS
Line inputs: <–100 dBFS
Instrument input: <–100 dBFS
Line outputs, balanced: <–85 dBu
Headphone outputs: <–75 dBu
•Distortion (THD)
+4 dBu / –6 dBFS, 1 kHz input, minimum gain
Mic input: Line input: Instrument input: Line outputs, balanced: Headphone outputs: •Maximum Levels (0 dBFS, 1 kHz)
Mic input, gain at minimum: +11 dBu
Line input, gain at minimum: +24 dBu
Instrument input, gain at minimum: +24 dBu
Line outputs, volume at maximum: +10 dBu
Headphone outputs, volume at maximum: +10 dBu
•Input Type
Input type: Female XLR balanced/ unbalanced
Female 1/4" balanced / unbalanced
MIDI [Onyx Producer 2•2]
•Output Type
Output type: Female 1/4" balanced / unbalanced
MIDI [Onyx Producer 2•2]
•USB
Format: USB 2.0, 24-bit, 192 kHz
•Power Requirements
USB Bus Powered: High-power device (5V, up to 500mA)
•Physical Dimensions and Weight

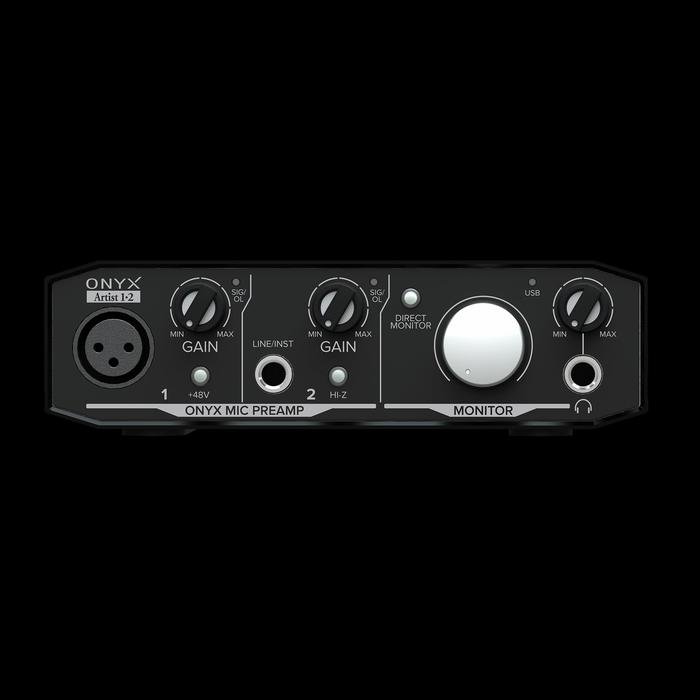

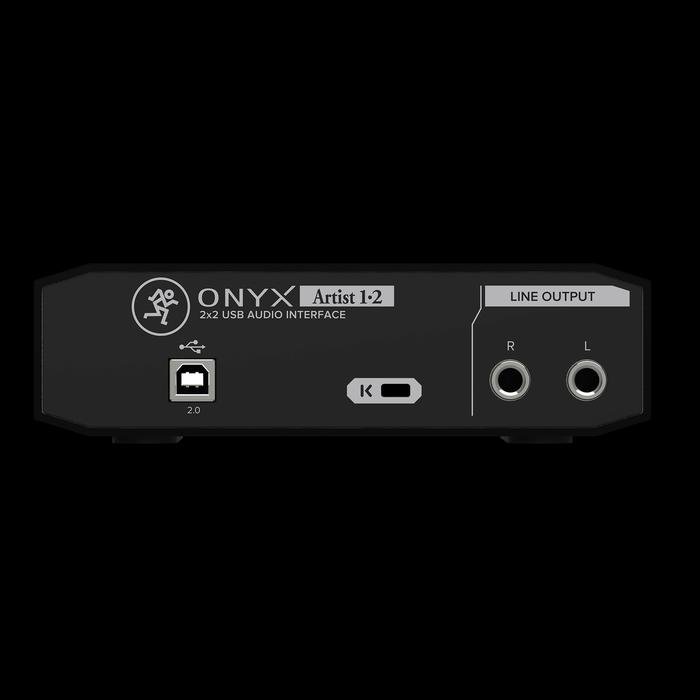

Onyx Artist 1•2
Height: 2.0 in / 51 mm
Width: 6.4 in / 163 mm
Depth: 4.5 in / 114 mm
Weight: 1.1 lb / 0.5 kg

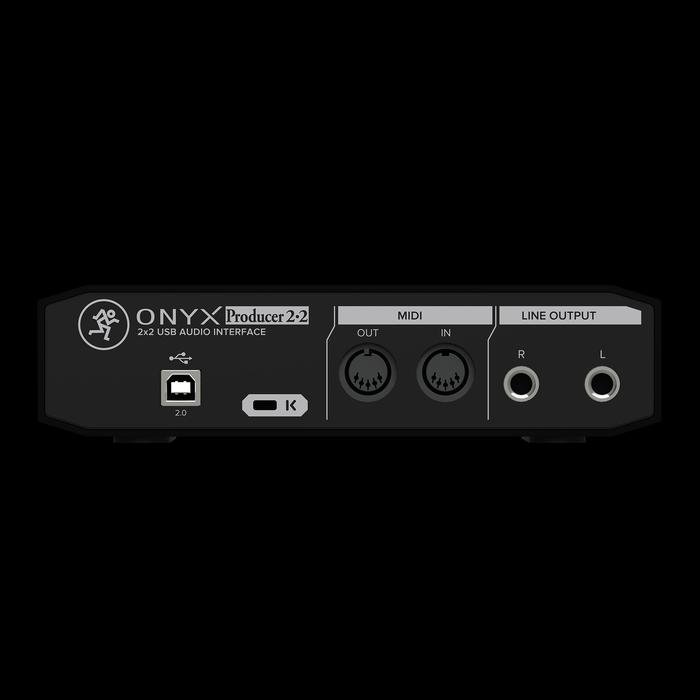

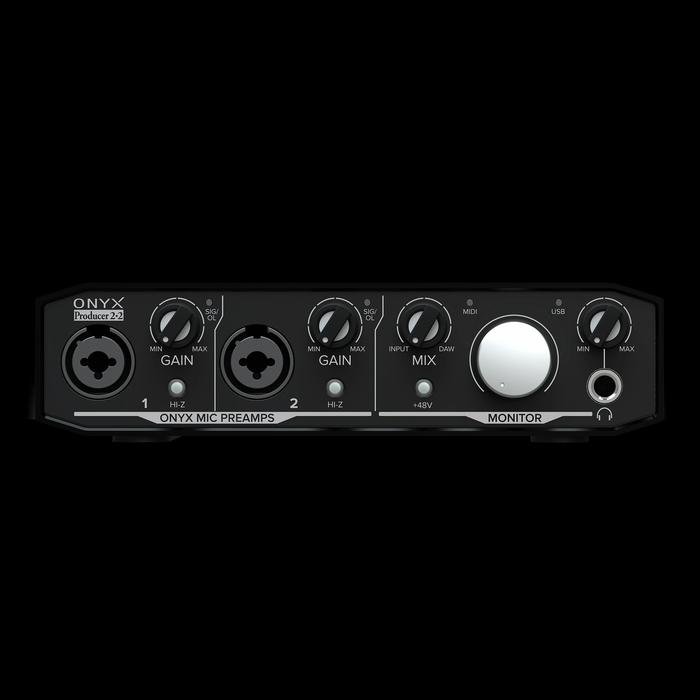

Onyx Producer 2•2
Height: 2.0 in / 51 mm
Width: 7.4 in / 188 mm
Depth: 4.5 in / 114 mm
Weight: 1.4 lb / 0.6 kg
